Here, we will see two examples of integrating RabbitMQ: a plain Java integration and a Spring integration inside our Student’s App.
Java Example
Start the previous rabbitMQ container that we created in the previous section. Then, create a new Java project and add the rabbitMQ client library gradle dependency:
implementation("com.rabbitmq:amqp-client:5.20.0")Now create a Publisher class:
package org.example;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import java.io.IOException;
import java.util.Date;
import java.util.Random;
import java.util.concurrent.TimeoutException;
public class Publisher {
public static void main(String[] args) throws IOException, TimeoutException {
Random rng = new Random();
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
try {
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare("TEST_JAVA_EXCHANGE", BuiltinExchangeType.DIRECT);
channel.queueDeclare("QUEUE_YELLOW", true, false, false, null);
channel.queueDeclare("QUEUE_BLUE", true, false, false, null);
channel.queueBind("QUEUE_YELLOW", "TEST_JAVA_EXCHANGE", "yellow");
channel.queueBind("QUEUE_BLUE", "TEST_JAVA_EXCHANGE", "blue");
while(true) {
int n = rng.nextInt(1, 4);
String message = new Date().toString();
String routingKey = "";
if (n == 1) {
routingKey = "yellow";
message = "yellow " + message;
} else {
routingKey = "blue";
message = "blue " + message;
}
channel.basicPublish("TEST_JAVA_EXCHANGE", routingKey, null, message.getBytes());
System.out.println("Sent '" + message + "'");
Thread.sleep(5000);
}
}catch (Exception e) {
System.out.println(e);
}
}
}In this main function, we:
- Create a connection to our RabbitMQ instance.
- Declare exchange, queues, and binding (declaring is an idempotent action: if the exchange (or queue, or binding) already exists in RabbitMQ, this function does nothing. Declaring before usage ensures that the entity exists).
- Publish a message to the exchange every 5 seconds endlessly. The routing key is generated randomly.

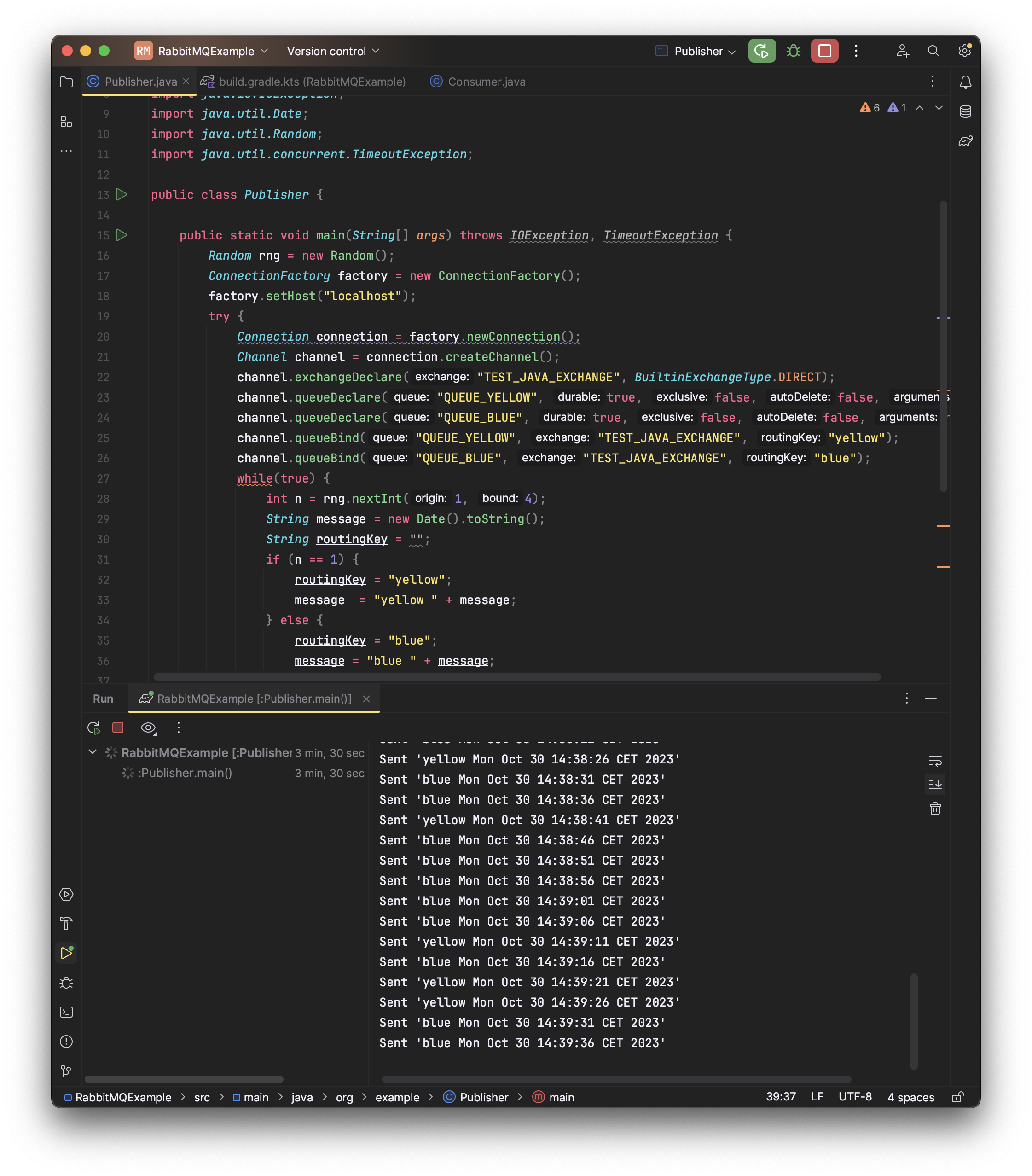

Launch the program.

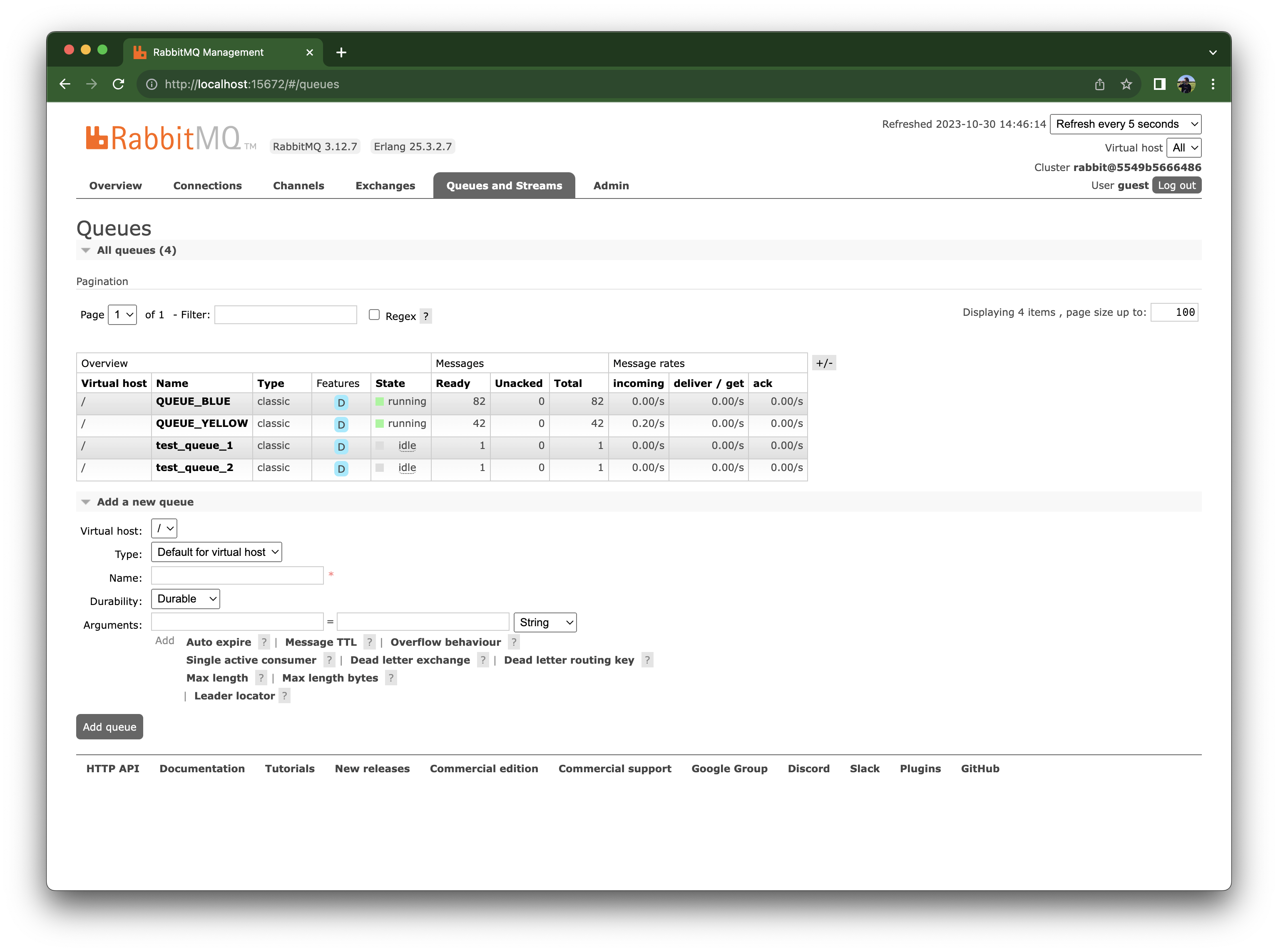

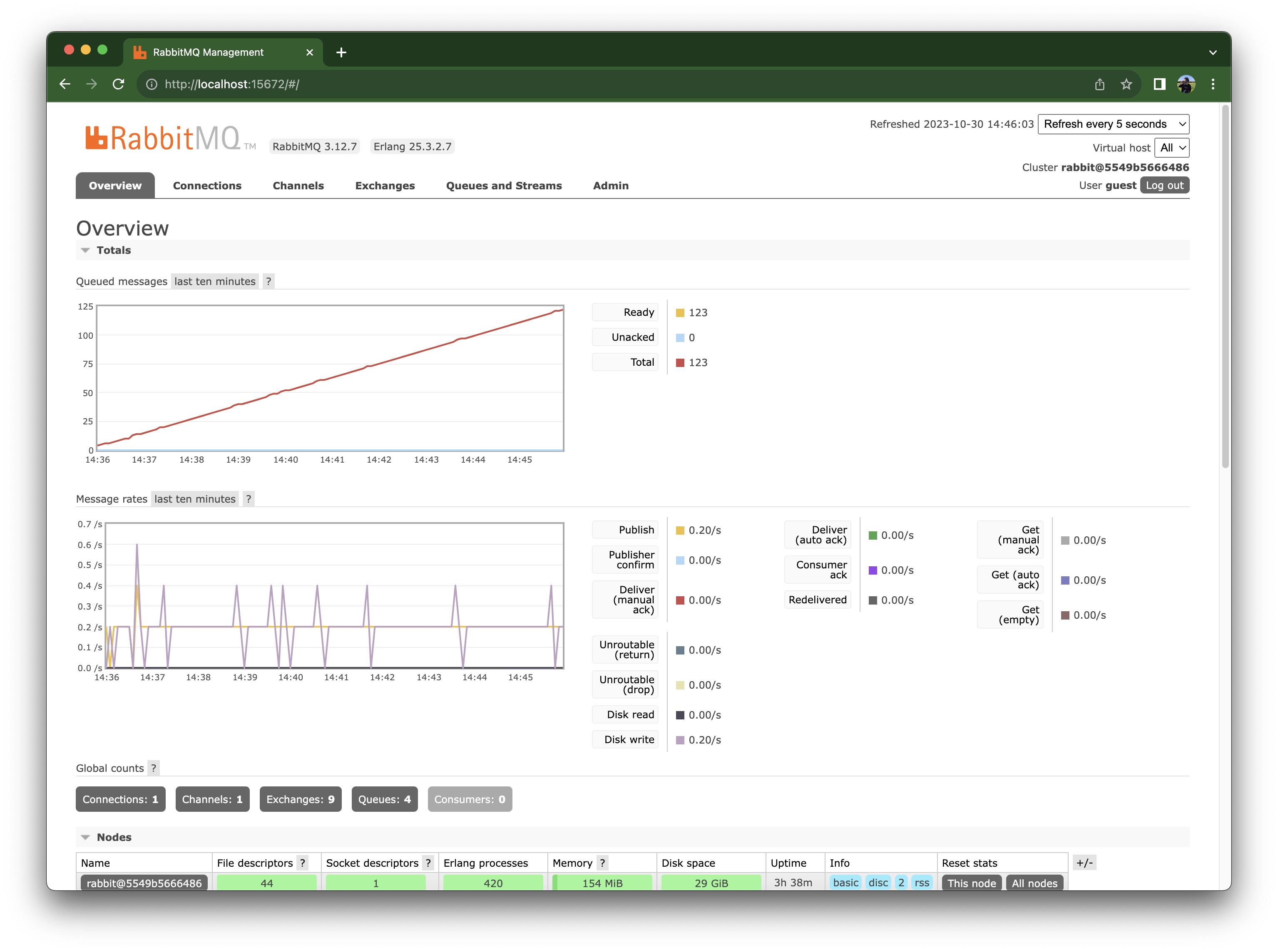

Now, open your RabbitMQ WEB-UI and have a look at the queues:
We write now a new Java Class for a Consumer:
package org.example;
import com.rabbitmq.client.*;
import java.io.IOException;
public class ConsumerYellow {
public static void main(String[] args) {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
try {
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare("TEST_JAVA_EXCHANGE", BuiltinExchangeType.DIRECT);
channel.queueDeclare("QUEUE_YELLOW", true, false, false, null);
channel.queueBind("QUEUE_YELLOW", "TEST_JAVA_EXCHANGE", "yellow");
channel.basicQos(1);
channel.basicConsume("QUEUE_YELLOW", true, new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException
{
String routingKey = envelope.getRoutingKey();
// simulate processing time
try {
Thread.sleep(1500);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
System.out.println("[" + routingKey + "] Received: " + new String(body));
}
});
}catch (Exception e) {
System.out.println(e);
}
}

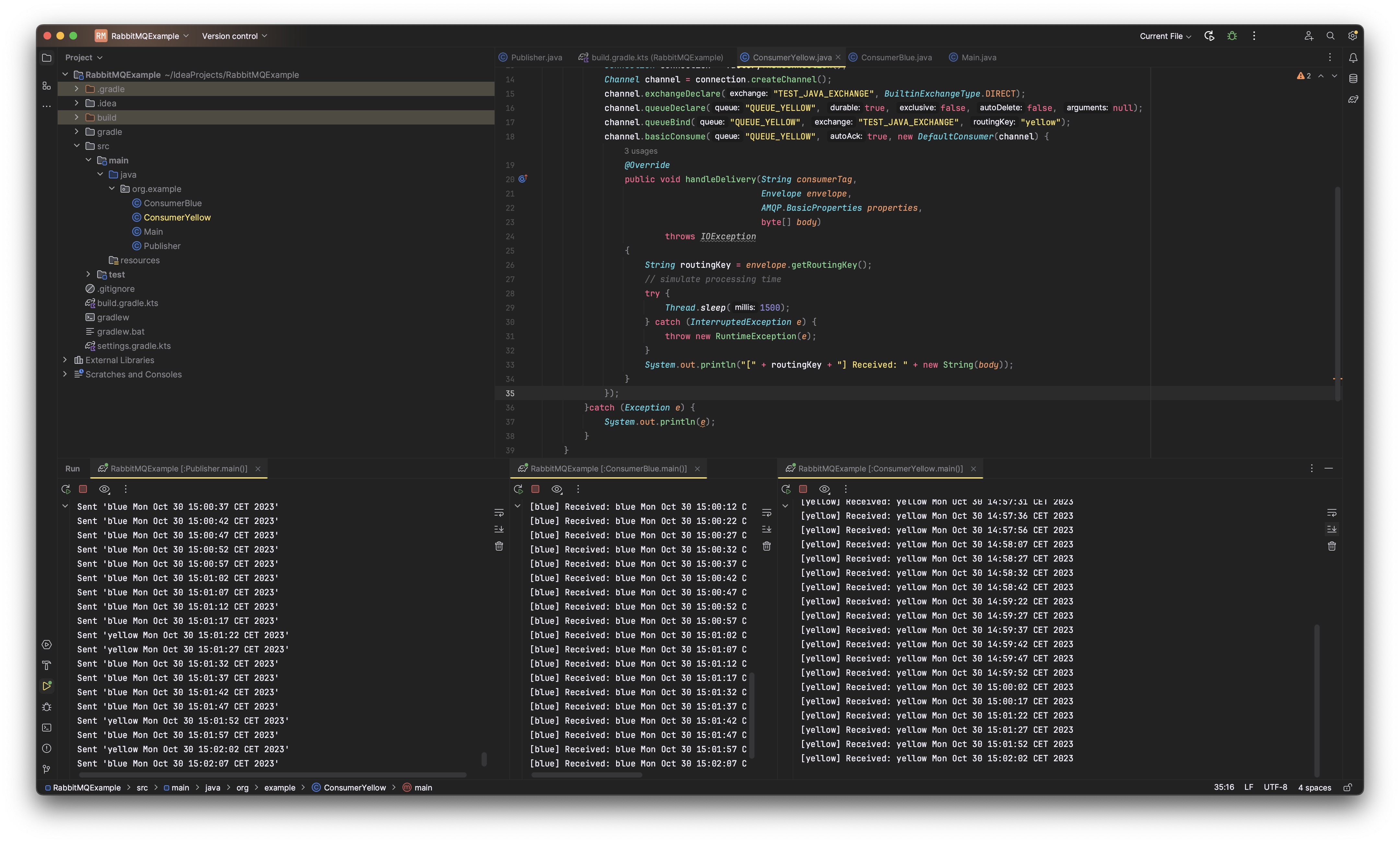

}The code should be self-explanatory: in the code, we create a consumer application that will fetch and process messages on the yellow queue. We create also a Consumer for the Blue queue and we run all the mains (Producer, ConsumerYellow, and ConsumerBlue - we have three different processes that interact with the RabbitMQ instance). This is the code for the BlueConsumer:
package org.example;
import com.rabbitmq.client.*;
import java.io.IOException;
public class ConsumerBlue {
public static void main(String[] args) {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
try {
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare("TEST_JAVA_EXCHANGE", BuiltinExchangeType.DIRECT);
channel.queueDeclare("QUEUE_BLUE", true, false, false, null);
channel.queueBind("QUEUE_BLUE", "TEST_JAVA_EXCHANGE", "blue");
channel.basicQos(1);
channel.basicConsume("QUEUE_BLUE", true, new DefaultConsumer(channel) {
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException
{
String routingKey = envelope.getRoutingKey();
// simulate processing time
try {
Thread.sleep(1000);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
System.out.println("[" + routingKey + "] Received: " + new String(body));
}
});
}catch (Exception e) {
System.out.println(e);
}
}
}

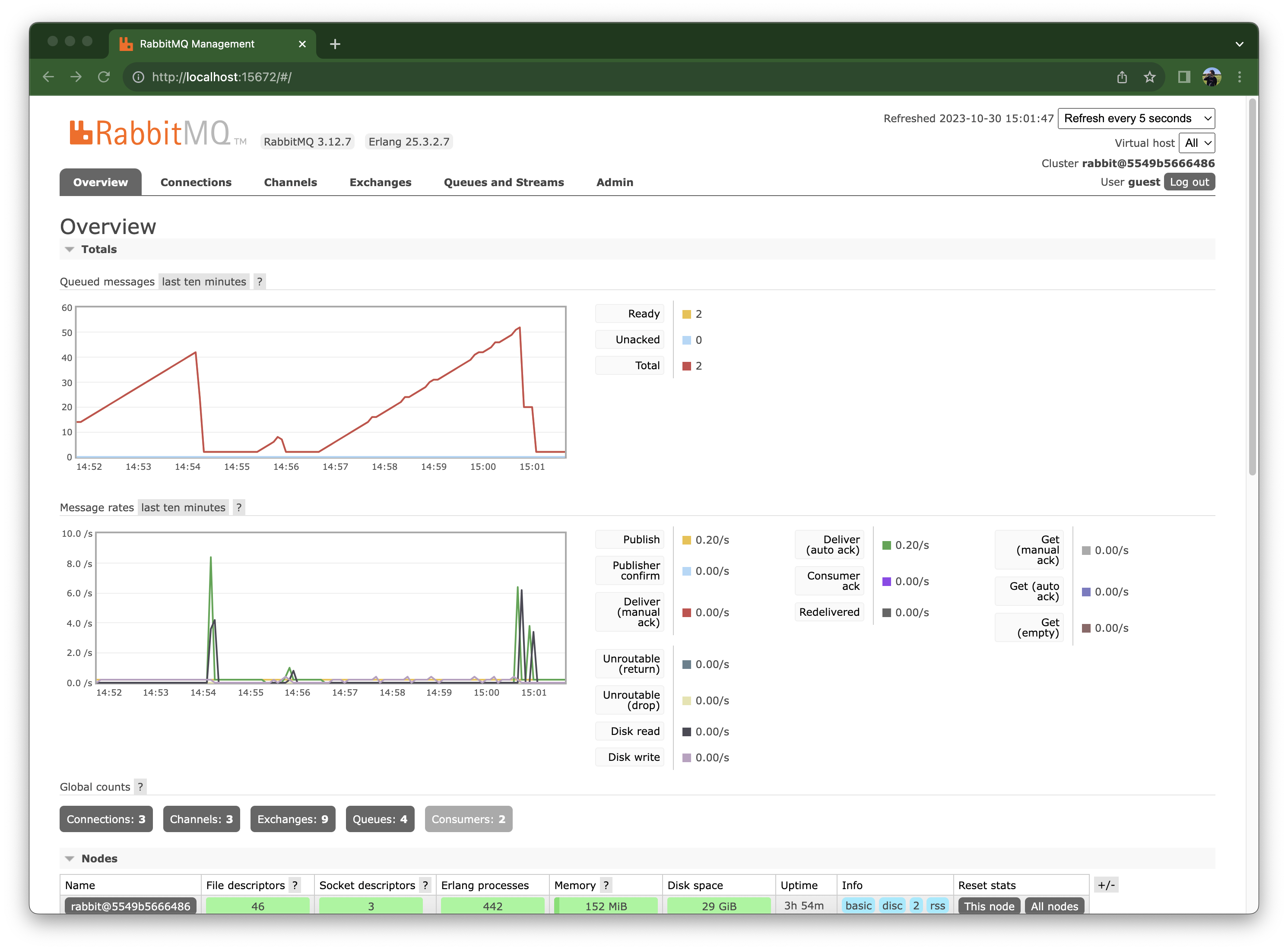

Probably you notice that when you launch the Consumer, ALL the messages in the queue will be fetched. This behaviour is generated by the so-called Consumer pre-fetch mechanism (see also this). You can change this by setting limits on how many messages a consumer can fetch at once: before calling channel.basicConsumer, just add:
channel.basicQos(5); // Max. five messages at onceSpring Example
Now turn back on our Students App. Let’s say that we want to integrate a service on your application and you want to use RabbitMQ. We need to send newly created Students to a service that does something (for example logs the students or whatewer you want). Spring provides a RabbitMQ Component integration:
gradle dependencies
Add spring-boot-starter to the dependencies of our Students App:
implementation("org.springframework.boot:spring-boot-starter-amqp")application.properties
spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672compose.yaml
services:
web:
build: .
restart: always
ports:
- "8080:8080"
depends_on:
- students_db
- studentsftp
- students_rabbitmq
environment:
- SPRING_DATASOURCE_URL=jdbc:mysql://students_db:3306/studentsapp?createDatabaseIfNotExist=true
- CAMEL_FTP_URI=ftp://studentsapp@studentsftp:21/students/export?password=stUd3nts@pp&passiveMode=true
- SPRING_RABBITMQ_HOST=students_rabbitmq
students_db:
volumes:
- students-db:/var/lib/mysql
image: "mysql:5.7"
restart: always
ports:
- "3306:3306"
environment:
- MYSQL_ROOT_PASSWORD=secret_password
studentsftp:
volumes:
- students-ftp:/ftp/studentsapp
image: "delfer/alpine-ftp-server"
ports:
- "21:21"
- "21000-21010:21000-21010"
environment:
- USERS=studentsapp|stUd3nts@pp
students_rabbitmq:
image: "rabbitmq:3.12.7-management"
ports:
- "5672:5672"
- "15672:15672" # WEB UI
volumes:
students-db:
students-ftp:Code
Create a Java package named amqp and write this Java class:
package com.example.studentsapp.amqp;
import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.core.TopicExchange;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class AMQPConf {
public static String POST_STUDENTS_ROUTING_KEY = "post-students";
public static String POST_STUDENTS_QUEUE = "post-students";
public static String STUDENTS_TOPIC_EXCHANGE = "students-exchange";
@Bean
public Queue postStudentsQueue() {
return new Queue(POST_STUDENTS_QUEUE);
}
@Bean
TopicExchange studentsExchange() {
return new TopicExchange(STUDENTS_TOPIC_EXCHANGE);
}
@Bean
Binding bindingPostStudentsExchange(Queue postStudentsQueue, TopicExchange studentsExchange) {
return BindingBuilder.bind(postStudentsQueue).to(studentsExchange).with(POST_STUDENTS_ROUTING_KEY);
}
}This class will be loaded automatically by Spring during the application bootstrap and defines the exchange, the queue, and the binding that our application will use. Then, on our student service, let’s publish the Student on the RabbitMQ instance: note the Autowired RabbitTemplate, automatically created (using our AMQPConf Configuration) and inject by Spring.
package com.example.studentsapp.services;
import com.example.studentsapp.amqp.AMQPConf;
import com.example.studentsapp.models.AppStudent;
import com.example.studentsapp.models.Student;
import com.example.studentsapp.repositories.StudentRepository;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import java.util.ArrayList;
import java.util.Collection;
import java.util.List;
@Service
public class AppStudentService {
@Autowired
StudentRepository studentRepository;
@Autowired
private RabbitTemplate rabbitTemplate;
public List<AppStudent> findAll() throws Exception {
List<AppStudent> appStudents = new ArrayList<>();
List<Student> studs = new ArrayList<>(studentRepository.getAll());
// wrap Students in a List of AppStudent
for (Student s : studs) {
appStudents.add(new AppStudent(s));
}
return appStudents;
}
public AppStudent fetch(String id) throws Exception {
// wrap Student in AppStudent
return new AppStudent(studentRepository.fetch(id));
}
public void add(Student student) throws Exception {
studentRepository.create(student);
rabbitTemplate.convertAndSend(AMQPConf.STUDENTS_TOPIC_EXCHANGE, AMQPConf.POST_STUDENTS_ROUTING_KEY, new ObjectMapper().writeValueAsString(student));
}

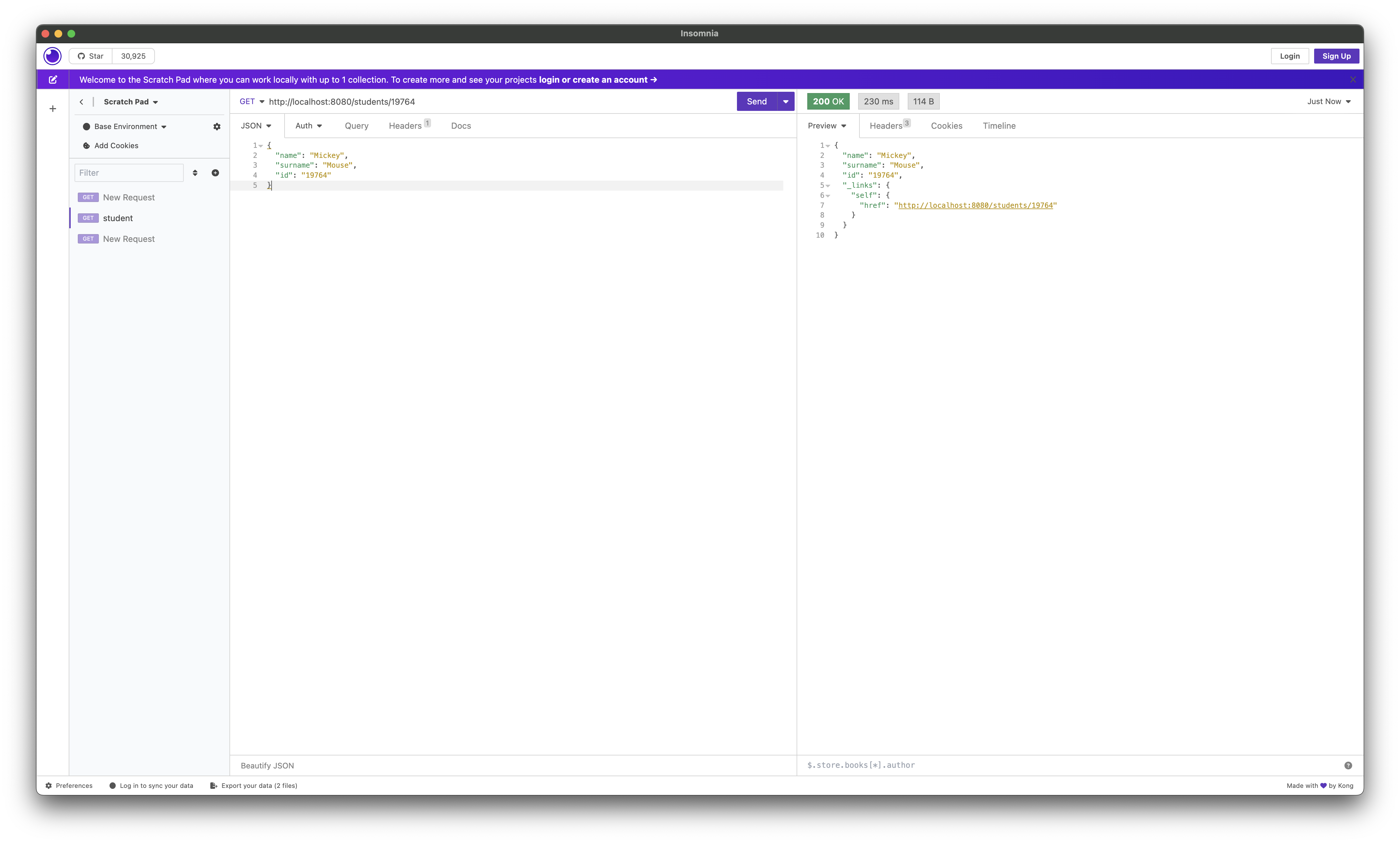

}Launch the containers with docker-compose (remember to build the application and shutdown the RabbitMQ container created previously), then create a new student: you should see a new message in your RabbitMQ instance.
Exercises
- Write a consumer that processes queue post-students. You can use whatever language you want. Write a Docker image for this consumer application, and add it as a service to the Docker Compose. If you want to experiment with other languages rather than Java, you can use for example pika for Python, amqplib for NodeJS, amqp091-go for GoLang.
